Soil Truck & Transport Calculator (2026) – Tipper Trip Estimator
Expert Guide
Professional transport planning tool for excavation logistics. Realistically estimates truck trips based on material type and looseness.
⚡ Quick Answer
Excavated soil expands 25–50% once dug (the Swell Factor). A 100 m³ excavation in standard soil yields **125 m³ loose soil** — requiring **21 trips** of a 6 m³ tipper. Rock expands up to 50%, needing even more trips. Plan your fleet using these numbers. For large-scale site logistics, visit pro.nirmansutra.com.
🛠️ How It Works
- •Select the soil or material type — each has a different expansion (swell) factor once excavated.
- •Enter the Bank Volume (in-ground volume before excavation) in cubic meters.
- •Select your truck size — standard site tippers are 6 m³, mini tippers 3 m³.
- •The tool multiplies Bank Volume × Swell Factor to get the Loose Volume you actually need to transport.
- •Trips = Loose Volume ÷ Truck Capacity, always rounded up to the nearest whole trip.

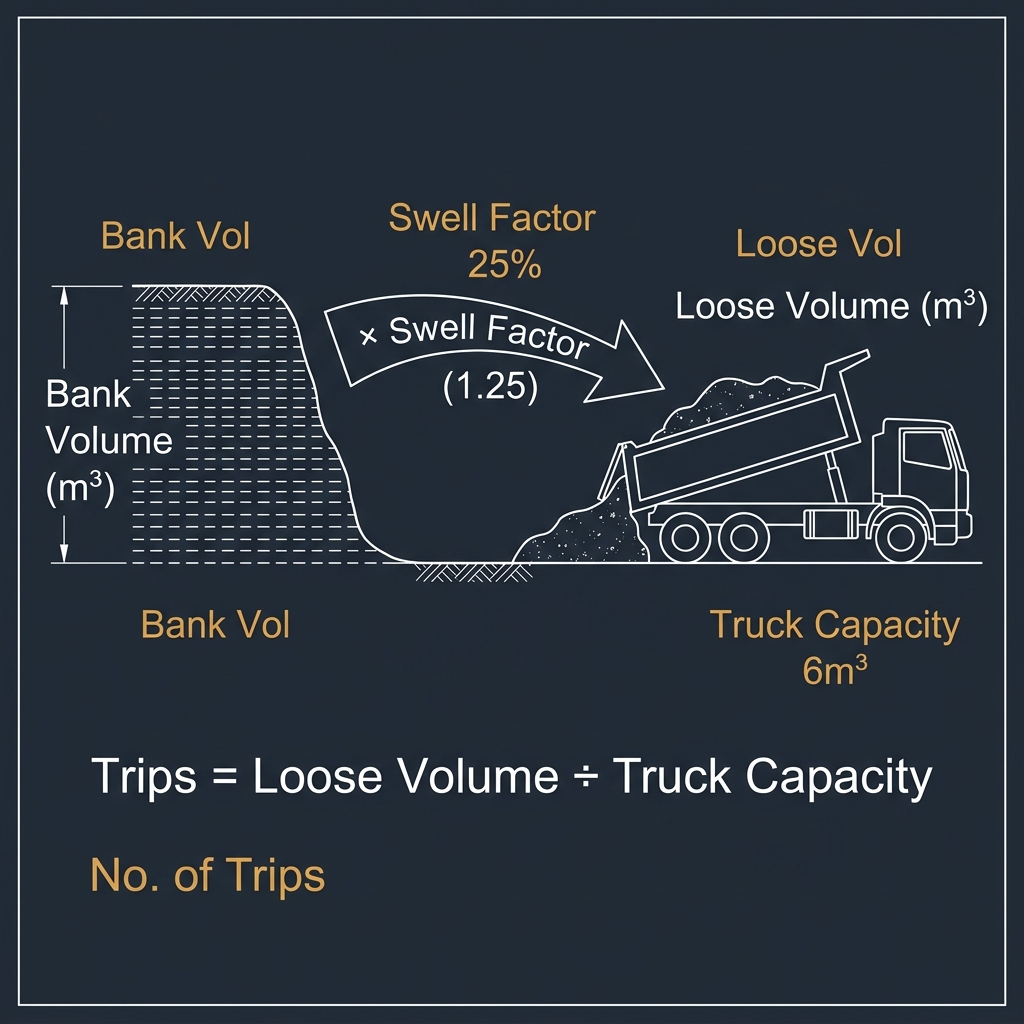

📐 Calculation Formula
Loose Volume = Bank Volume × Swell Factor
Swell Factors: Soil = 1.25 | Hard Clay = 1.35 | Rock = 1.50
No. of Trips = Loose Volume ÷ Truck Capacity (m³)
📋 Real-Life Example
Example: 100 m³ excavation in Hard Clay (35% swell), 6 m³ Standard Tipper.
1. Swell Factor = 1.35.
2. Loose Volume = 100 × 1.35 = 135 m³.
3. No. of Trips = 135 ÷ 6 = 22.5 → 23 trips (round up).
4. Tip: Always round trips UP — partial loads count as full trips.
🔍People Also Search / यो Calculator मा अक्सर खोजिने कुराहरू
Tipper trip calculator for 1000 CFT soil 2026
Soil swell factor chart for truck transport logistics
Standard tipper load capacity in Nepal Kathmandu 2026
How many truck loads for foundation soil removal
Mato bokne tipper ko osarpasar kharch
Tipper ka bhada aur loading ka hisab
Excavated soil transport cost per km Nepal
Mini tipper vs standard tipper capacity m3
Soil bulking factor for earthwork logistics
टिप्पर का भाड़ा और लोडिंग का हिसाब
❓ Frequently Asked Questions
For 100m³ bank volume (in-ground), you get 125m³ loose soil. With a standard 6m³ tipper, you need exactly 21 trips.
The most common site tipper (Tata/Eicher) has a 5.5 to 6.5 m³ capacity. Mini-tippers used in hilly areas are typically 3 m³.
