Soil Compaction & Swell Calculator (2026) – QC Master
Expert Guide
Smart tool for monitoring physical soil properties and compaction quality control (QC).
⚡ Quick Answer
Compaction Degree = (Field Dry Density ÷ Max Dry Density) × 100%. **Pass if ≥ 95% MDD** (standard IS/BS specification). Example: Field Density 1,800 kg/m³ with MDD 1,950 kg/m³ → 92.3% — **FAIL**, requires re-rolling. For structured QC reports, visit pro.nirmansutra.com.
🛠️ How It Works
- •Select the soil type — each has different swell and shrinkage factors for volume estimates.
- •Enter the original Bank Volume (in-ground) to compute loose and compacted fill volumes.
- •Enter the Field Dry Density from your density test (sand replacement or core cutter method).
- •Enter the Max Dry Density (MDD) from the Proctor compaction test done in the lab.
- •The tool calculates Compaction % and gives a PASS/FAIL verdict against the 95% MDD standard.

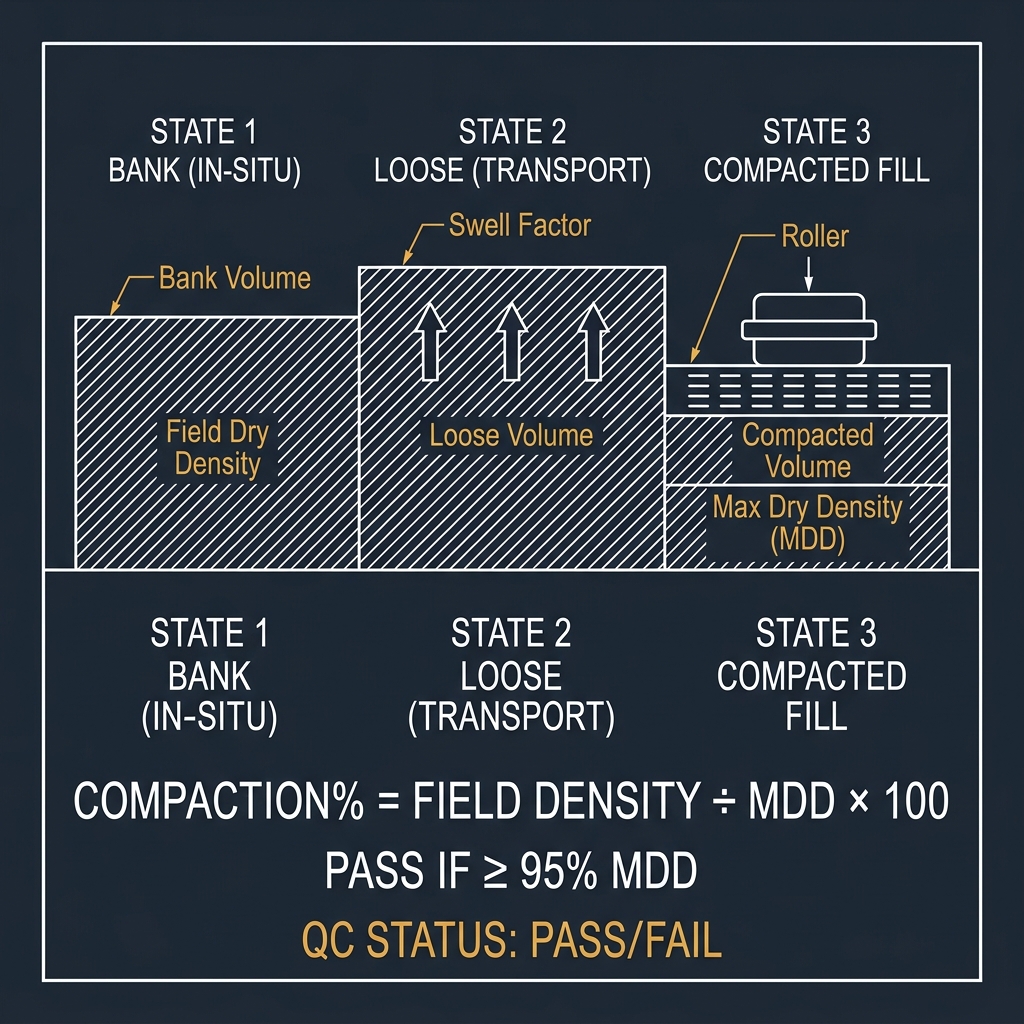

📐 Calculation Formula
Compaction Degree = (Field Dry Density ÷ MDD) × 100 %
Pass Threshold = ≥ 95% MDD (standard specification)
Loose Volume = Bank Volume × Swell Factor
Compacted Volume = Bank Volume × Shrinkage Factor
📋 Real-Life Example
Example: Sandy soil, Bank Volume = 10 m³.
1. Loose Volume (transport) = 10 × 1.25 (swell) = 12.5 m³.
2. Compacted Fill Volume = 10 × 0.90 (shrinkage) = 9.0 m³.
3. Lab MDD = 1,950 kg/m³. Field Density test = 1,800 kg/m³.
4. Compaction % = (1800 ÷ 1950) × 100 = 92.3% → FAIL (below 95%).
5. Action: Add 1–2 more roller passes and retest.
⚠️ Common Mistakes to Avoid
- ✕Testing compaction immediately after rainfall — saturated soil gives false high density readings.
- ✕Applying compaction in layers thicker than 150–200 mm — deeper soil remains loose even if surface reads as dense.
- ✕Using MDD from a different soil sample — always match the lab Proctor test to the actual fill material being used on site.
🔍People Also Search / यो Calculator मा अक्सर खोजिने कुराहरू
Sand replacement test procedure and calculation 2026
Proctor compaction test MDD vs OMC values
Soil shrinkage factor for foundation backfill 2026
Pass requirements for road subgrade compaction Nepal
माटोको गुणस्तर र कम्प्याक्सन जाँच
मिट्टी की कॉम्पैक्शन रिपोर्ट कैसे पढ़ें?
Degree of compaction formula and pass threshold
Field dry density vs Max dry density ratio
Standard penetration test SPT vs Compaction
मिट्टी की कॉम्पैक्शन रिपोर्ट कैसे पढ़ें?
❓ Frequently Asked Questions
It means the field dry density has reached 95% of the Maximum Dry Density achieved in a lab proctor test. This is mandatory for foundations.
Ensure the "Optimum Moisture Content" (OMC) is maintained and use a vibratory roller in 150-200mm layers.
