Trapezoidal Footing Calculator (2026) – Sloped Foundation
Expert Guide
Calculate the total concrete volume for sloped foundations by defining base dimensions and column slopes. Perfect for structural BOQs.
⚡ Quick Answer
Trapezoidal footings save up to 20% concrete material by sloping towards the column. For professional foundation designs, visit pro.nirmansutra.com.
🛠️ How It Works

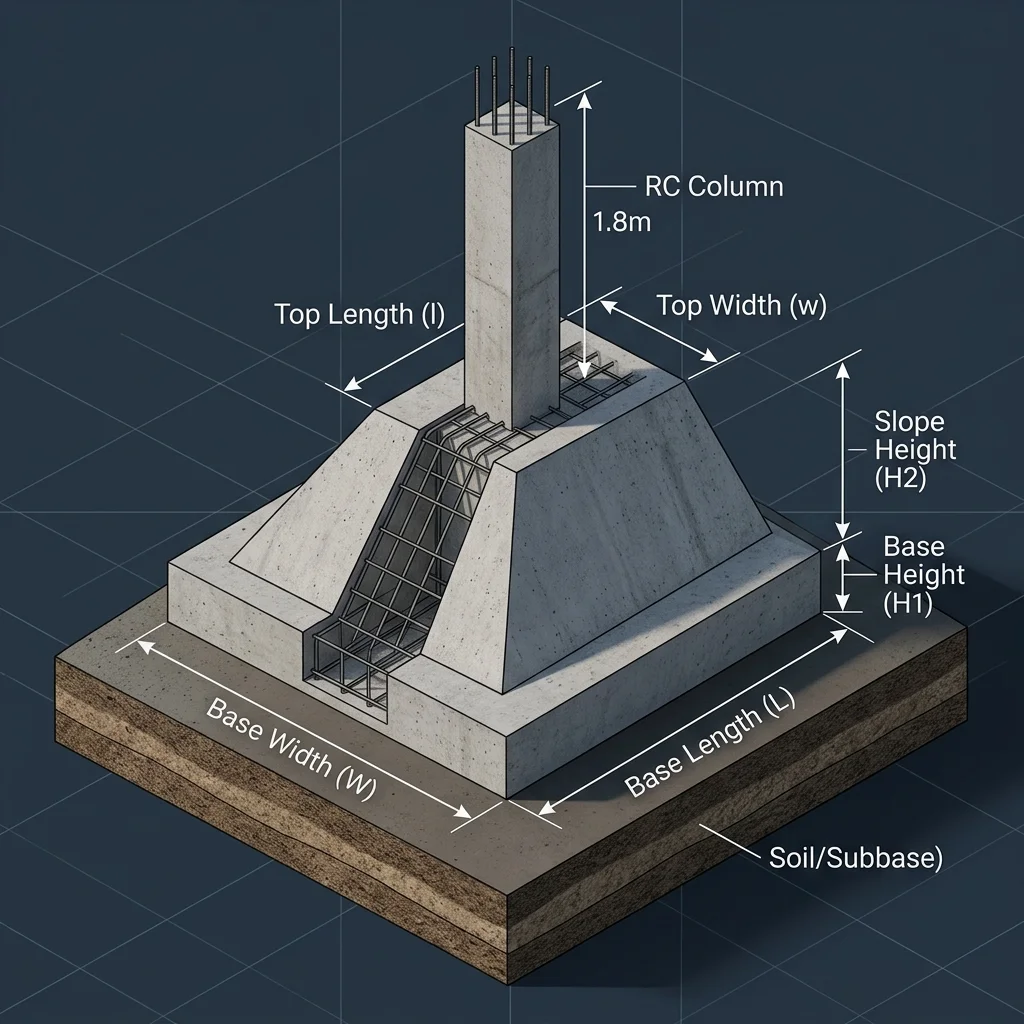

- •**Base Length (L) & Width (W):** These are the dimensions of the rectangular footing area at the very bottom.
- •**Top/Column Length (l) & Width (w):** These are the dimensions of the column cross-section where the footing slope ends.
- •**Base Height (H1):** The thickness of the uniform rectangular block at the bottom of the footing.
- •**Slope Height (H2):** The **vertical** height of the sloped section from the top of the base to the bottom of the column.
- •**Quantity & Mix:** Specify how many identical footings you need and the concrete structural grade (e.g., M20).
📐 Calculation Formula
Volume = V(Base) + V(Frustum)
V(Frustum) = (h/3) × [A1 + A2 + √(A1×A2)]
📋 Real-Life Example

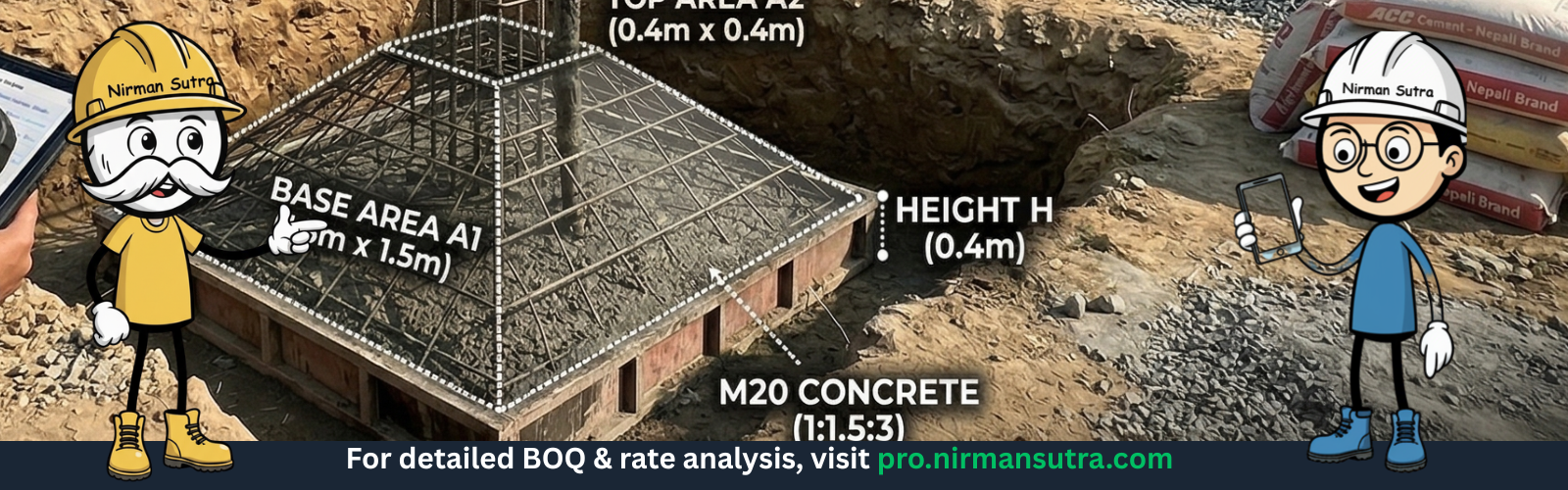

Example: 1.5m x 1.5m base (0.3m height) + 0.6m slope to 0.3m x 0.3m column.
1. Base Vol = 1.5 * 1.5 * 0.3 = 0.675 m³.
2. Slope Vol = (0.6/3) * (2.25 + 0.09 + sqrt(2.25 * 0.09)) ≈ 1.23 m³.
3. Total = 1.9 m³.
⚠️ Common Mistakes to Avoid
- ✕Calculating the slope as a simple wedge instead of a frustum piramid shape.
- ✕Using diagonal length instead of vertical height for the slope portion of the footing.
- ✕Forgetting the concrete cover for reinforcing mesh at the bottom.
🔍People Also Search / यो Calculator मा अक्सर खोजिने कुराहरू
Trapezoidal footing concrete volume formula
Sloped foundation estimation Nepal 2026
Frustum of pyramid volume calculator online
Trapezoidal footing vs isolated footing cost
Foundation ma lagne cement baluwa ko hisab
Concrete quantity for 4x4 footing calculation
Column ki footing ka volume kaise nikale
RCC foundation design for 3 story building
Safe bearing capacity and footing size
कॉलम की फुटिंग का आयतन कैसे निकालें?
❓ Frequently Asked Questions
H1 is the fixed vertical height of the base. H2 is the vertical height of the slope itself—not the diagonal edge. Both are crucial for the Frustum formula.
They save up to 20% concrete material while providing optimal load distribution from column to base. It is a cost-effective choice for heavy buildings.
Yes, even with a sloped design, the bottom rectangular base must contain a reinforcing steel mesh to handle tension from structural loads.
